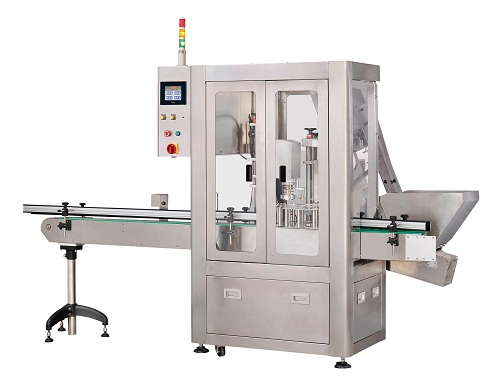

Versatile monobloc starwheel based, fully automatic Capping Machine which can be customised to suit the application.
It can be integrated into an existing line or supplied as a self contained unit with in-feed, out-feed systems and conveyors with options for filling, plugging, capping and many other features.

• Servo motor torque capping heads control torque digitally
• PLC Control system combined with HMI(touch screen)
• Automatic Cap elevator, feed and place cap at once
• Digital output torque adjustment
• Emergency stop and Three -color indicate light
• Continuous capping 「No Bottle,No Cap」Design
• Heavy-duty conveyor by MCC® slat top-chain
• Linear Cutting capping head to ensure
• Quick swap change parts
• 20 slots memory recall
• Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
• Water-proof with IP54 grade
• Safety interlocks with clear acrylic guard, auto-stop when door is open

• Low cap supply sensor and alarms
• Alarm for miss-aligned or missing caps
• Bottle infeed and outfeed system
• Customized star wheel and capping head
• Turnkey linkage with filler, labeler and other in-line systems

• Cap type：Screw and press cap (Customized cutting)
• Standard Cap Size: 25mm – 60mm O.D
• Capping Speed: 30 ~40 Bottles/min
• Air Requirements: 90 PSI @ 3 CFM6Kg
• Power Supply：110/220VAC, 50/60Hz
• Machine Dimensions:(L)2758mm(W)1237mm(H)1800mm
