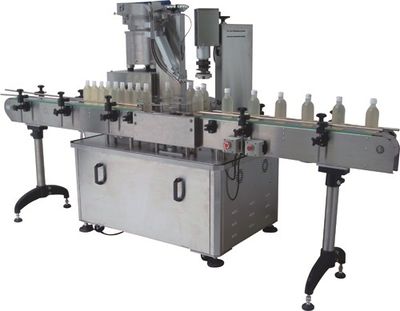

Automatic Rotary Capping Machine


Model No.: CR-435


capping machine,capping machines,capping machinery,capper,cappers,capping equipment, capping system,capping systems


AutomaticRotary Capping Machine CR-435 is a complete capping system which includes the cap bulk supply, cap orienting and delivery, cap placement and tightening, and container ingress, staging and discharge onto the customer-supplied existing conveyor.

FEATURES:

  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
  • Heavy-duty conveyor by MCC slat top-chain
  • No bottle,no cap
  • Sophisticated capping module
  • Torque capping mechanism ensure no over-capping
  • Precise wire cutting capping head, fit to cap with perfection
  • Vibratory cap orientation with reject system
  • Interchangeable star wheel for different diameter of bottle

OPTIONS:

  • Bottle infeed and outfeed accumulation tray
  • Customized star wheel for bottle position
  • Door-open auto-stop comply with safety operation
  • Turnkey linkage with capper, labeler and other in-line systems

SPECIFICATIONS:

  • Power: single phase 110/220VAC, 50/60Hz
  • Suit for plastic screw or press cap
  • Capping speed: 30-40 Bottles/min
  • Works with caps from 22mm to 120mm in diameter
  • Air requirement: 6kgf/cm2
  • Machine Dimensions: (L)2500mm (W)1200mm (H)1600mm
    (For reference only, the real drawing should be considered as final.)

DOWNLOAD:
Tabletop Round Bottle Labeler Automatic Rotary Capper

The above specifications are subject to change without prior notice.
