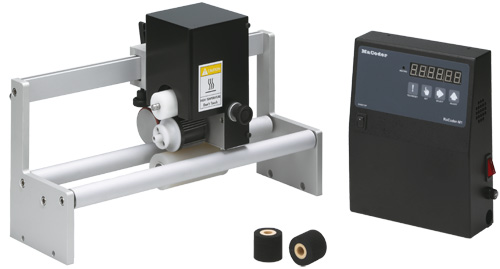

Hot Ink Roll Date Coder
| Model No.:
PR-200 |
|
|
|
PR-200
can be easily installed on all
types of continuous motion packaging machines such as flow pack units,
form-fill-seal packaging machine. It is for coding manufacturing dates,
expiration date, production date, the weight, or the price, and other
marks on packaging plastic films or paper films in various industries.
|
| FEATURES:
|
|
Suit for HFFS,
VFFS and continuous packaging
machines
Driven by
stepping motor
Coding detected
by encoder accurately
Microprocessor
program
Digital LED
control panel, and automatic
temperature feedback control system
Hot ink dry
instantly on contact with substrate
Multiple and
quick changeover printing head for
R&T types
3mm &
5mm brass types for clear printing
Easy adjustment
of coding area with 9 digits x 14
lines
Including
aluminum mounting bracket
Max liner speed
to 35M/min (standard)
|
| OPTION:
|
| Servo
motor
Ink roll
pre-warmer
|
| SPECIFICATIONS:
|
|
Power：
110/220VAC,50/60Hz, 200W
Signal
required：Contact
signal,NPN photoelectric sensor or limit switch
Printing
speed：Liner
speed is up to 35M/min
Minimum
printing
distance：120mm (40mm is possible)
Minimum package
length：40mm for T-type, 80mm for R-type
Character
size：3mm for
T-type, 3mm or 5mm for R- type
Print area :
1-14 lines *
14 digits
Consumption
material :
Hot ink roll , 32 x 36mm
Dimension :
Size of
printer (L)120(W)165(H)185mm
Size of control
box
(L)190(W)70(H)220mm
|
| DOWNLOAD:
|
  |
The
above specifications are
subject to change without prior notice.
|
