Automatic

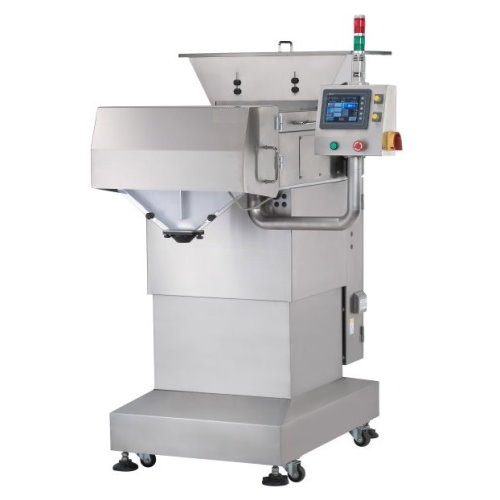

Multi-Channels Tablets/Capsule Counter
| Model No.: TM-420 |
|
|
|
It is designed to feed and count any size,shape or quantity of tablet
and capsule (hard shell capsules, and soft gelatin capsules are
compatible) with 100% counting accuracy without change parts . The
counting of these products and the indexing of the bottle to be filled
is controlled by PLC and Human Machine Interface. It's simple to
operate and easy to clean.
|
| FEATURES:
|
- Variable speed control for 12 tracks
- Guarantees 100% Counting Accuracy
- Speed 2500~4000 pcs/min
- Touch screen control panel with 50 memory slots
- Advances in vibratory linear feeding suits for
any kind of products
- Emergency stop and Three -color indicate light
- Clean up by vacuuming dust accumulation system
- Pre-Counting increases machine outputs
- Tool-free release for counting different
products
- Japan made “ Keyence” high accuracy fiber sensor
- Air-cylinder index to direct the next batch of
containers into filling position
- Frame and component made of SUS#304 and ion
anodized aluminum, all meet cGMP requirement
|
| OPTIONS:
|
- In-Feed and Out-Feed Conveyor
- Rejection System (Remove Miscounting Bottles)
- Lid Open and Lid Close system
- Turnkey linkage with filler, labeler and other
in-line systems
- Product Quantity Level control
|
| SPECIFICATIONS:
|
- Counting Speed：2500~4000pcs/min
- Counting Accuracy：100%
- Power Supply：110/220VAC, 50/60Hz
- Air requirement：200 L / minute @ 6bar
- Product Dimensions：(L)1280mm(W)1160mm(H)1690mm
|
| DOWNLOAD:
|
  |
The
above specifications are
subject to change without prior notice.
|
