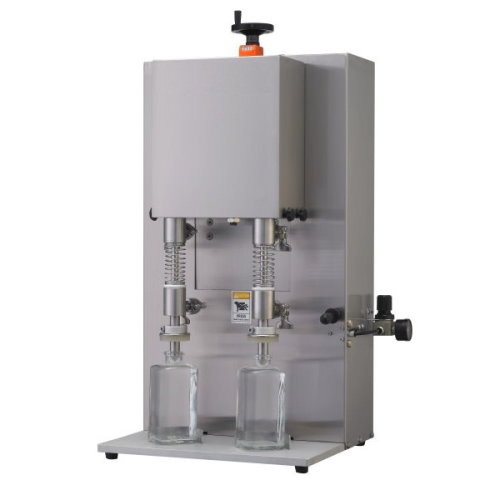

  Tabletop Overflow Filler

Model No.: FL-120

Tabletop Overflow Filler
It's suitable for Water like(1cps) , non-granule, non-foamy liquid.

FEATURES:
  • 2 copies of overflow filling module
  • Active pumping system
  • Filling accuracy： +/-1%
  • Pneumatic index system, bottle positioning adjustment
  • Shut-off nozzle
  • Overfill return
  • Frame and main component are made by s/s SUS#304 and ion anodized aluminum
  • Material meet GMP regulation
  • Water Proof
  • Alcohol applicable
OPTIONS:
  • 3.5L Stainless Product Hopper (Customized Volume Hopper available)
SPECIFICATIONS:
  • Filling Range：300~3000ml
  • Speed：10~60 bottles/ Min
  • Filling Accuracy：0.5%~1%
  • Power Requirement：No Electricity required
  • Air Consumption：150L/MIN , 5-7KG/CM2
  • Bottle Size：Ø 20~50mm, Height 50~260mm
  • Machine Dimensions：(L)343mm(W)862 mm(H)211mm
DOWNLOAD:
Tabletop Overflow Filler Tabletop Overflow Filler



The above specifications are subject to change without prior notice.
