Tabletop

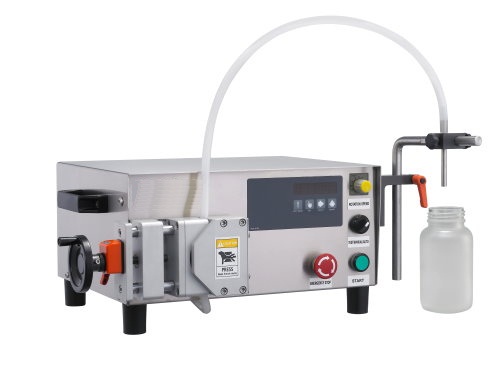

Peristaltic Pump Liquid Filler
| Model No.: FT-100 |
|
|
It is the best system to avoid contamination ,
product is only in contact with the medically approved tubing and the
nozzle, against cross contamination and easy cleaning. Without having
to change anything but the dimension of the tubing in use. The target
market is small to medium-sized batch production that requires
flexibility, high precision and efficiency.
|
| FEATURES:
|
- Easy to set, even if the novice can also with
ease
- With peristaltic pump, product is only in
contact with the tubing
- Made of SUS 316 and 316L stainless steel ,meets
cGMP requirement
- LED display, easy adjusting filling volume,
speed and between filling
- Draws liquids directly from a tank or drum, or
add a hopper if need
- Without any change parts other than tubing
- Three operating modes: manual , intermittent
filling or foot switch
- Three kind of filling velocities are available
- Apply liquid like water, eye drops, lotion, hot
sauce(under 60℃) or any other free flowing liquid
|
| OPTIONS:
|
- 3.5L stainless steel tank
- Heater (under 140℉/ 60℃)
- Diving nozzle with bracket
- Foot switch
- Photocell activation
- Vacuum nozzle
|
| SPECIFICATIONS:
|
- Power：110/220VAC, 50/60Hz
- Filling Range：5~500ml
- Filling Speed：5~50ml/sec
- Accuracy：0.5%~1%
- Dimension：(L)360mm(W)580mm (H)325mm
|
| DOWNLOAD:
|
  |
The
above specifications are
subject to change without prior notice.
|
