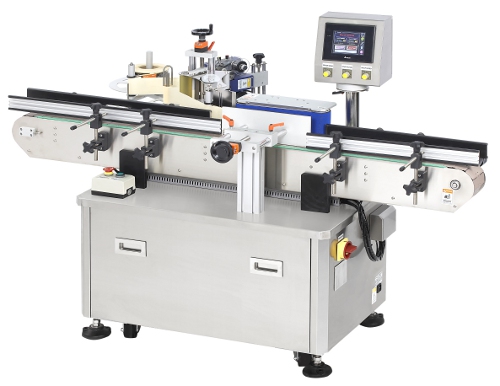

High
Speed Round Bottle Labeler
| Model No.: LR-450S |
|
|
|
Automatically wrap pressure sensitive label around bottles with very
high speed. It is widely applied into cosmetic, pharmaceutical, food
industry.
|
| FEATURES:
|
- MITSUBISHI Servo Motor Driven / Max Labeling
Speed：40 Meter/ Min
- PLC Program and Touch Screen for Easy work
- Press-and-Spin ensure full wrapping with
precisely
- Dancer Arm for Excellent web tension controlss
- Variable labeling / conveyor speed
- Air driven Gating distances bottles precisely
- Perfect Through Beam Optic Fiber Product
Sensing system
- Height and angle are adjustable
- Label Count Down feature/ Production Run Counter
- One Touch label set and potitioning
- Encoder Technology Synchronizes with Dispensing
- Quick and easy Changeover
- Sanitary SUS#304 and anodized aluminum frame
- Heavy Duty Conveyor by MCC Slat Chain conveyor
|
| OPTIONS:
|
- Hot Stamping Coding Machine(PE-200 , PM-200)/
Ink jet printer
- LION LDR2100 Clear Label Sensor
- Stainless Cabinet Type
- Standard Infeed & Accumulation Tray
- Motorized Infeed and Accumulation Rotary Table
(600mm or bigger)
- Belt Type Infeed system: Larger Capacity
|
| SPECIFICATIONS:
|
- Labeling Speed：60~120 pcs/Min(Depends on
Container and Label Size)
- Bottle Size：Diameter 16~90mm / Height 30~160mm
- Label Width：10~100mm
- Label Length：20~300mm
- Label Roll：Inner diameter 75mm / Outer Diameter
300mm
- Power：single phase 10/220VAC, 50/60Hz
- Product Dimensions：(L)2132mm (W)980mm (H)1340mm
|
| DOWNLOAD:
|
  |
The
above specifications are
subject to change without prior notice.
|
