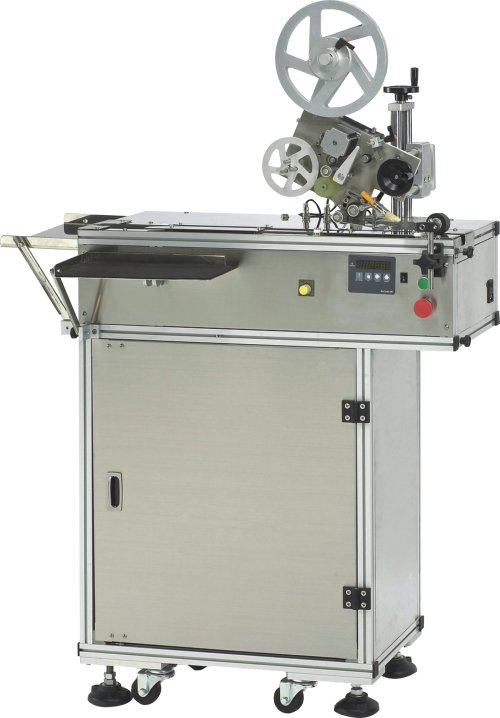

High Accuracy SD
Card Top Labeler
| Model No.: LT-420 |
|
|
|
It used to be adopted by Electronic Manufacturing Sevices(EMS) company
for high accurate top labeling on SD, CF, MD card or PCB...
|
| FEATURES:
|
- Labeling Accuracy：± 0.5mm
- Stepper Motor for fast and accurate labeling
performane
- In Line Application or Independent Operation
- Optium Sensing System offer the most accurate
position.
- Sick optic fiber system for highly accurate gap
detection
- Auto Label Set and positioning
- Encoder Technology Synchronizes Conveyor with
Dispensing
- Variable labeling / conveyor speed
- Height and angle are adjustable by easy
handwheel/li>
- Controlled by Microprocessor, LED display
- Label Count Down feature/ Production Run Counter
- One Touch label set and potitioning
- Modular design for easy maintenance/ Quick and
easy Changeover
- Sanitary SUS#304 Frame
|
| OPTIONS:
|
- Pneumatic Magzine System
- Place and Load Feeder
- Friction Flat Carton Feeder
- Passive Top Pressing Belt：For Slim Product
(Suggested)
- Mitsubishi Servo Motor：Labeling Speed at 40
Meter / Min
- Touch Screen Control System with Job Memory
- LION LDR2100 Clear Label Sensor
- Hot Stamping Coding Machine(PE-200 , PM-200)/
Ink jet printer
|
| SPECIFICATIONS:
|
- Stepper Motor Driven
- Labeling Speed：40~120 pcs/ min
- Accuray：± 0.5mm
- Label Length：10~250 mm
- Label Width：10~100mm
- Label Roll：Inner diemeter 75mm Outer diemeter
300mm
- Power：Single Phase 110/220VAC, 50/60Hz
- Product Dimesion：(L)1437mm (W)708mm (H)1397mm
|
| DOWNLOAD:
|
  |
The
above specifications are
subject to change without prior notice.
|
