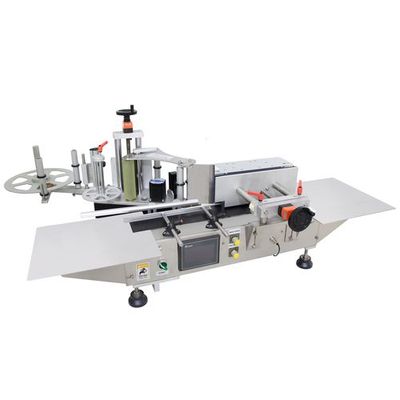

Tabletop Round Bottle Labeling Machine


Model No.: LR-100



Tabletop Round Bottle Labeler




Tabletop Round Bottle Labeling Machine LR-100 is a tabletop labeling machine for round labeling or side labeling. A durable but portable machine provides efficiency at minimum costs.

FEATURES:

  • Stepper Motor for fast and accurate labeling performan
  • Variable labeling / conveyor speed
  • Wrap Station make label well attached (Square Bottle compatible)
  • Perfect Through Beam Optic Fiber Product Sensing system
  • Height and angle are adjustable
  • Controlled by Microprocessor, LED display
  • Label Count Down featur/ Production Run Counter
  • Modular design for easy maintenance/Quick and Easy Changeover
  • Sanitary SUS#304 and anodized aluminum frame
  • Conveyor (L) 25.8*3.74”breaks space limitation

OPTIONS:

  • Oriented Press-and-Spin station for oriented labeling or high-accuracy labeling
  • Hot Stamping Coding Machine(PE-200 , PM-200)/ Ink jet printer
  • LION LDR2100 Clear Label Sensor

SPECIFICATIONS:

  • Stepper Motor Drivens (Linear Speed 13M/min)
  • Labeling Speed: 20~60pcs/min (Depends on Container and Label Size)
  • Bottle Size: Diameter 16~90mm
  • Label Width: 10~100mm
  • Label Length: 20~300mm
  • Label Roll: Inner diameter 75mm / Outer Diameter 300mm
  • Power: single phase 110/220VAC, 50/60Hz
  • Machine Dimensions: (L)1234mm (W)839mm (H)540mm
    (For reference only, the real drawing should be considered as final.)

DOWNLOAD:
Tabletop Round Bottle Labeler Labeling Machine

The above specifications are subject to change without prior notice.
